Schritt Motor Kontroller - Für zwei klein Motoren

Projekt: Schritt Motor Kontroller V0.0
Datum: 5. Feb. '07
Autor: Manuel Magnin
  Info@Clinch.ch
Quelle: www.clinch.ch



Management Summary:
Schritt Motor Kontroller für Kleinmotoren
Die Schaltung soll einfach aufzubauen sein mit Standard Bauteilen
Interface RS232

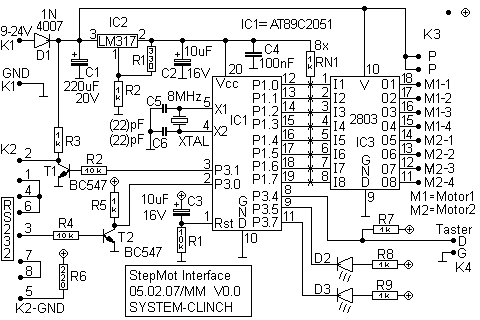

Schema:


Teile liste:
SBB_V04.xls

89C2051 Batromix.com Programmiersoftware  http://www.batronix.com/elektronik/downloads/assembler.shtml
89C2051 Batromix.com Softwaredownload  Download Prog-Studio Software
89C2051 Batromix.com Programmer  www.batronix.com/elektronik/bauanleitungen/mc-brenner.shtml
89C2051 Befehle Assembler PDF
LM317T Spannungsregler PDF
